Nanosecond Pulse Power Generators

TPS specializes in custom nanosecond pulse power generator design.  Contact us with specifics about the pulse duration, pulse amplitude, repetition rate, and load for your application.

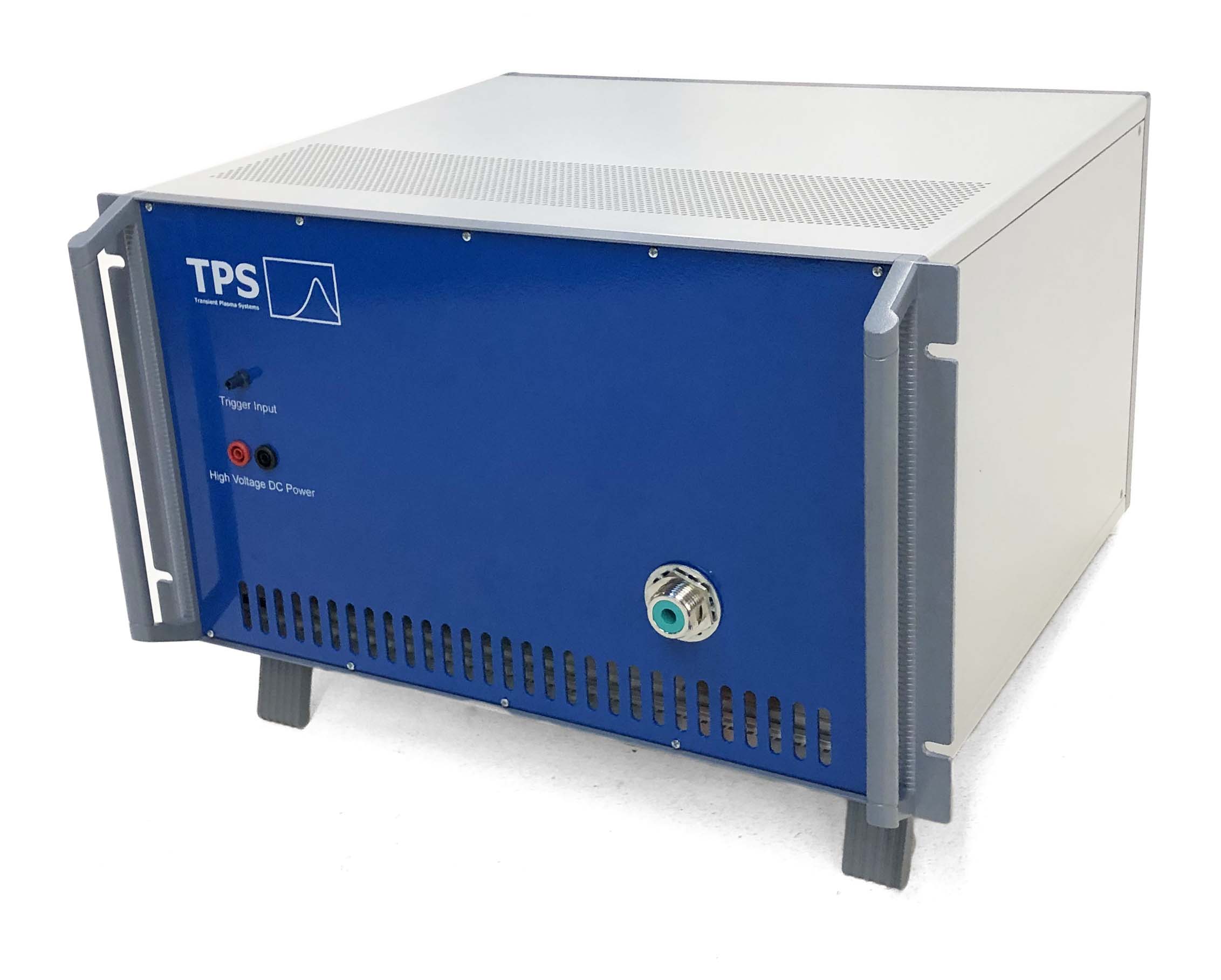

SSPG-20X — 15 ns pulse generator

  • Adjustable amplitude from 0-20 kV into 50 Ω
  • Adjustable amplitude from 0-30 kV into 50 pF
  • 10 kHz CW pulse repetition rate
  • >10 kHz burst repetition rates available
  • Safely drives full spectrum of loads, from short to open
  • Triggered by fiber optic link for EMI protection
  • External 0-400 VDC, 0-2.5A required
  • Uses 85-265 VAC, 47-63 Hz
  • Comes with 6 ft. high-voltage output cable, with custom lengths available

SSPG-300 —10 ns pulse generator

  • Adjustable amplitude from 0-7 kV into 50 Ω
  • Adjustable amplitude from 0-10 kV into 50 pF
  • 20 kHz burst repetition rate
  • Safely drives full spectrum of loads, from short to open
  • Triggered by fiber optic link for EMI protection
  • Includes internal HV power supply
  • Uses 85-265 VAC, 47-63 Hz
  • Comes with 6 ft. high-voltage output cable, with custom lengths available
